Linear Inverted Pendulum

Imitate the dynamical behavior of a segway or a crane with one piece of hardware. Engage students in developing heuristic and optimal controllers, which will swing-up the pendulum rod.

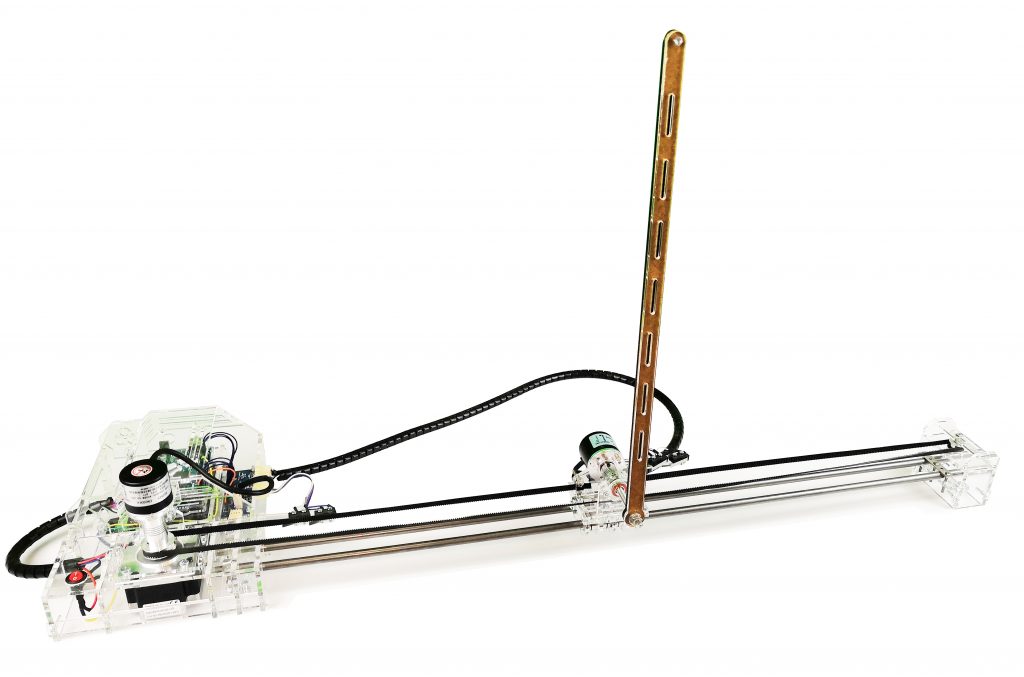

The pendulum comes in a durable custom-made casing (other colors of casing are also available), that house custom-made electrical driver and power source. The cart to which the pendulum is attached is connected with a chain to the first encoder, that measures the movement of the cart. The second encoder measures the rotational dynamics of the pendulum.

A detailed description and instruction manual is available to download here. Please, contact us at for further information and support.

Updated 17.6.2022
